Datasheet for characterization corner: NangateOpenCellLibrary_fast_fast , library "NangateOpenCellLibrary".
Data for cell AOI222_X4 (Combinational) . Eventual numbers in italic show that the values have required interpolations due to internal data manipulation and/or non-matching LUT index templates. See notes for additional information.

Summary

- General Cell Characteristics

Strength 4 Cell Area 3.724 um2 Equation ZN = "!(!(!(((A1 & A2) | (B1 & B2)) | (C1 & C2))))" ZN = "!(!(!(((A1 & A2) | (B1 & B2)) | (C1 & C2))))" Type Combinational Input A1, A2, B1, B2, C1, C2 Output ZN PG Pins VDD (primary_power), VSS (primary_ground)

State Table A1 A2 B1 B2 C1 C2 ZN L - L - L - H L - L - - L H L - - L L - H L - - L - L H H H - - - - L - L L - L - H - L L - - L H - L - L L - H - L - L - L H - - H H - - L - - - - H H L

- Schematic

- Capacitance

Capacitance [fF]
A1	1.6321
A2	1.7627
B1	1.6256
B2	1.7235
C1	1.6239
C2	1.6796

- NLDM Capacitance

[input capacitance table (capacitance, [fall|rise]_capacitance and [fall|rise]_capacitance_range attributes)]

- Max Capacitance

[maximum allowed output capacitance]

- Timing




Propagation Delay [ns] Input Transition [ns] 0.0009 0.1462 Load Capacitance [fF] 0.3656 242.31 0.3656 242.31 A1 to ZN fall 0.03 0.09 0.04 0.10 rise 0.05 0.13 0.10 0.19 A2 to ZN fall 0.03 0.09 0.03 0.09 rise 0.05 0.13 0.11 0.20 B1 to ZN fall 0.03 0.09 0.05 0.11 rise 0.06 0.14 0.10 0.19 B2 to ZN fall 0.03 0.09 0.04 0.10 rise 0.06 0.14 0.11 0.19 C1 to ZN fall 0.04 0.10 0.06 0.12 rise 0.06 0.15 0.09 0.18 C2 to ZN fall 0.04 0.10 0.05 0.11 rise 0.07 0.15 0.10 0.18

Output Transition [ns] Input Transition [ns] 0.0009 0.1462 Load Capacitance [fF] 0.3656 242.31 0.3656 242.31 A1 to ZN fall 0.00 0.05 0.00 0.05 rise 0.00 0.08 0.00 0.08 A2 to ZN fall 0.00 0.05 0.00 0.05 rise 0.00 0.08 0.00 0.08 B1 to ZN fall 0.00 0.05 0.00 0.05 rise 0.00 0.08 0.00 0.08 B2 to ZN fall 0.00 0.05 0.00 0.05 rise 0.00 0.08 0.00 0.08 C1 to ZN fall 0.00 0.05 0.00 0.05 rise 0.00 0.08 0.00 0.08 C2 to ZN fall 0.00 0.05 0.00 0.05 rise 0.00 0.08 0.00 0.08

- Propagation Delay

[values from timing groups (cell_rise and cell_fall)]

- Output Transition

[values from timing groups (rise_transition and fall_transition)]

- Full-Cycle Delay

[values from cell_fall + cell_rise]



Capacitance [fF] A1 1.6321 A2 1.7627 B1 1.6256 B2 1.7235 C1 1.6239 C2 1.6796

Leakage [nW] 463.84



- Power

Leakage [nW]
463.84

Dynamic Power Consumption [uW/GHz] Input Transition [ns] 0.0009 0.1462 Load Capacitance [fF] 0.3656 242.31 0.3656 242.31 A1 to ZN fall 14.44 16.08 28.00 30.42 rise 21.42 22.66 33.89 35.38 A2 to ZN fall 14.40 16.09 24.32 27.41 rise 22.85 24.45 35.19 36.58 B1 to ZN fall 16.27 18.11 29.48 31.01 rise 23.45 24.96 32.15 34.70 B2 to ZN fall 16.30 18.11 25.90 27.92 rise 24.90 26.31 33.53 35.39 C1 to ZN fall 17.82 19.91 31.31 32.86 rise 25.18 26.44 32.60 34.91 C2 to ZN fall 17.80 19.91 27.61 29.69 rise 26.61 28.40 34.03 36.52

- Static Power Consumption

[leakage power data (leakage_power group and cell_leakage_power attribute)]

- Dynamic Power Consumption

[values from internal_power groups in output pins (rise_power, fall_power and power)]

- Full-Cycle Power Consumption

[values from fall_power + rise_power]

- Total Power Consumption

[sum of internal_power groups from output and input pins (rise_power, fall_power and power)]

- Total Full-Cycle Power Consumption

[values from total fall power + total rise power]

- Notes

---

• Conditions for characterization library NangateOpenCellLibrary, corner NangateOpenCellLibrary_fast_fast: Vdd= 1.25V, Tj= .0 deg. C . Additional corners: NangateOpenCellLibrary [NangateOpenCellLibrary_typical_typical], NangateOpenCellLibrary [NangateOpenCellLibrary_slow_slow], NangateOpenCellLibrary [NangateOpenCellLibrary_low_temp_low_temp], NangateOpenCellLibrary [NangateOpenCellLibrary_worst_low_worst_low].

Output transition is defined from 30% to 70% (rising) and from 70% to 30% (falling) output voltage.
Propagation delay is measured from 50% (input rise) or 50% (input fall) to 50% (output rise) or 50% (output fall).


Conditions for characterization library NangateOpenCellLibrary, corner NangateOpenCellLibrary_fast_fast: Vdd= 1.25V, Tj= .0 deg. C . Additional corners: NangateOpenCellLibrary [NangateOpenCellLibrary_typical_typical], NangateOpenCellLibrary [NangateOpenCellLibrary_slow_slow], NangateOpenCellLibrary [NangateOpenCellLibrary_low_temp_low_temp], NangateOpenCellLibrary [NangateOpenCellLibrary_worst_low_worst_low].
Output transition is defined from 30% to 70% (rising) and from 70% to 30% (falling) output voltage.
Propagation delay is measured from 50% (input rise) or 50% (input fall) to 50% (output rise) or 50% (output fall).

- General Cell Characteristics

Strength 4 Cell Area 3.724 um2 Equation ZN = "!(!(!(((A1 & A2) | (B1 & B2)) | (C1 & C2))))" ZN = "!(!(!(((A1 & A2) | (B1 & B2)) | (C1 & C2))))" Type Combinational Input A1, A2, B1, B2, C1, C2 Output ZN PG Pins VDD (primary_power), VSS (primary_ground)

State Table A1 A2 B1 B2 C1 C2 ZN L - L - L - H L - L - - L H L - - L L - H L - - L - L H H H - - - - L - L L - L - H - L L - - L H - L - L L - H - L - L - L H - - H H - - L - - - - H H L

- NLDM Capacitance

[input capacitance table (capacitance, [fall|rise]_capacitance and [fall|rise]_capacitance_range attributes)]

- Max Capacitance

[maximum allowed output capacitance]

- Propagation Delay

[values from timing groups (cell_rise and cell_fall)]

- Output Transition

[values from timing groups (rise_transition and fall_transition)]

- Full-Cycle Delay

[values from cell_fall + cell_rise]

- Static Power Consumption

[leakage power data (leakage_power group and cell_leakage_power attribute)]

- Dynamic Power Consumption

[values from internal_power groups in output pins (rise_power, fall_power and power)]

- Full-Cycle Power Consumption

[values from fall_power + rise_power]

- Total Power Consumption

[sum of internal_power groups from output and input pins (rise_power, fall_power and power)]

- Total Full-Cycle Power Consumption

[values from total fall power + total rise power]

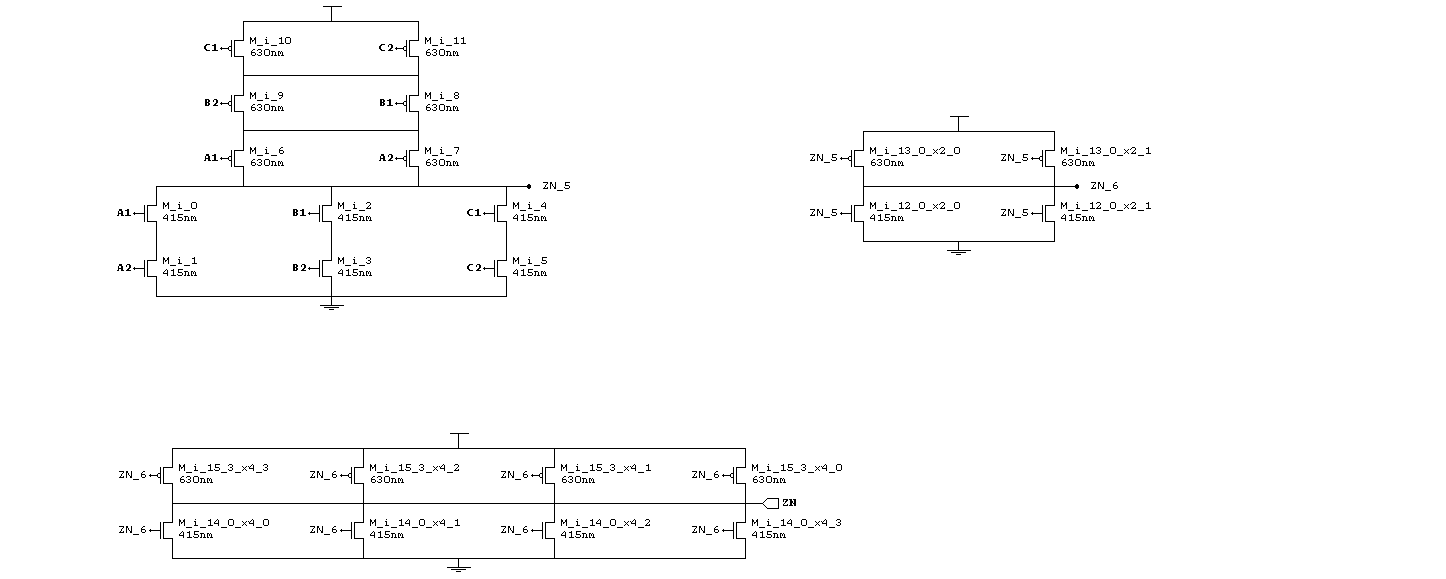

Schematic

---

Capacitance

NLDM Capacitance

[input capacitance table (capacitance, [fall|rise]_capacitance and [fall|rise]_capacitance_range attributes)]

Gate Capacitance for All Cells

Max Capacitance

[maximum allowed output capacitance]

Maximum Capacitance for All Cells

Timing

Propagation Delay

rise / fall

[values from timing groups (cell_rise and cell_fall)]

Propagation Delay for All Cells

---

Output Transition

rise / fall

[values from timing groups (rise_transition and fall_transition)]

Output Transition for All Cells

---

Full-Cycle Delay

[values from cell_fall + cell_rise]

Full-Cycle Delay for All Cells

---

Power

Static Power Consumption

[leakage power data (leakage_power group and cell_leakage_power attribute)]

Static Power Consumption for All Cells

---

Leakage [nW]
463.84

Dynamic Power Consumption

[values from internal_power groups in output pins (rise_power, fall_power and power)]

Dynamic Power Consumption (fall) for All Cells

Dynamic Power Consumption (rise) for All Cells

---

Full-Cycle Power Consumption

[values from fall_power + rise_power]

Full-Cycle Power Consumption for All Cells

---

Total Power Consumption

[sum of internal_power groups from output and input pins (rise_power, fall_power and power)]

Total Power Consumption (fall) for All Cells

Total Power Consumption (rise) for All Cells

---

Total Full-Cycle Power Consumption

[values from total fall power + total rise power]

Total Full-Cycle Power Consumption for All Cells

---
